5 Ton Double Beam Electric Wire Rope Hoist

Junchi Wire Rope Hoist: Our product is a CE certified 3 phase electric wire rope hoist, which ensures the highest level of quality and safety. The hoist meets European Union safety standards.

Core Advantages:

1.Safety Certified: CE certified, complying with EU safety standards.

2.Powerful Performance: Three-phase motor with multi-voltage (400V/380V/240V/220V) compatibility.

3.Efficient & Smooth: Lifting speed of 8 m/min and traveling speed of 20 m/min.

4.Customizable: Load capacity from 3 to 20 tons, with customizable lifting height.

5.Service Support: Backed by a 1-year warranty and professional after-sales support.

Quantity :

add to cart

Contact Now

Electric Wire Rope Hoist Introduction:

electric wire rope hoists are widely used in various settings such as factories, warehouses, docks, and workshops for material lifting, loading and unloading, and installation tasks. Equipped with a powerful three-phase motor and adaptable voltage options (400V, 380V, 240V, and 220V), these hoists offer load capacities ranging from 3 to 20 tons. Whether you require specific lifting heights or load capacities, our hoists can be customized to meet your needs.

ElectricWire Rope Hoist Advantages:

1. CE-Certified Three-Phase Electric Wire Rope Hoist
Our hoist is CE-certified and operates on a three-phase electric system, guaranteeing top-tier quality and safety. Fully compliant with EU safety regulations, it serves as a dependable lifting solution for a wide range of industrial and commercial applications.

2. Versatile Three-Phase Motor & Multi-Voltage Operation
Equipped with a robust three-phase motor, the hoist supports flexible voltage inputs—400V, 380V, 240V, and 220V—enabling smooth integration into diverse power environments without compromising performance.

3. Smooth and Efficient Lifting & Travel Speeds
With a lifting speed of 8 m/min and a traveling speed of 20 m/min, the hoist ensures steady and efficient handling of heavy or bulky items, making it ideal for large-scale and voluminous material handling projects.

4. Customizable Lifting Height & Load Capacity
We offer tailored solutions to match your specific lifting requirements. The hoist is available in load capacities from 3 to 20 tons, with customizable lifting heights to suit various operational needs.

Electric Wire Rope Hoist Specifications:

Model number	CD1/MD1 Electric wire rope hoist
Lifting weight(Ton)	0.5	1	2	3	5	10
Lifting height (m)	6 to 12	6 to 30	6 to 30	6 to 30	6 to 30	9 to 30
Liting speed(m/min)	8(0.8)	8(0.8)	8(0.8)	8(0.8)	8(0.8)	7(0.7)
Running speed(m/min)	20	20	20	20	20	20
Wire rope diameter (mm)	4.8	7.4	11	13	15.5	15.5
I-beam track model(GB706-65)	16-28b	16-28b	20a-32c	20a-32c	25a-45c	32b-63c
Minimum radius of annular orbit(m)	1.5	1.5 to 3.5	2 to 4	2 to 4	2 to 4	3 to 7.2

Hoisting motor	Model number	ZD21-4	ZD22-4	ZD31-4	ZD32-4	ZD41-4	ZD51-4
	Rated power(KW)	0.8	1.5	3	4.5	7.5	13
	Rated speed(r/min)	1380	1380	1380	1380	1400	1400
	Rated curent(A)	2.2	4	7	10	16.5	28
Running motor	Model number	ZDY11-4	ZDY11-4	ZDY12-4	ZDY12-4	ZDY21-4	ZDY21-4
	Rated power(KW)	0.2	0.2	0.4	0.4	0.8	0.8*2
	Rated speed(r/min)	1380	1380	1380	1380	1380	1380
	Rated curent(A)	0.7	0.7	1.3	0.3	2.2	2.2*2
weight (KG)		135--195	180-255	250-360	320-440	590-800	820-1125

Electric Wire Rope Hoist Details:

Copper corer cotor ,safe and efficient,running smoothly

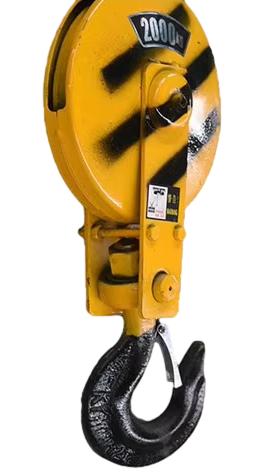

After hot forging, the lower hook can be rotated 360° with safety buckle to ensure safe operation

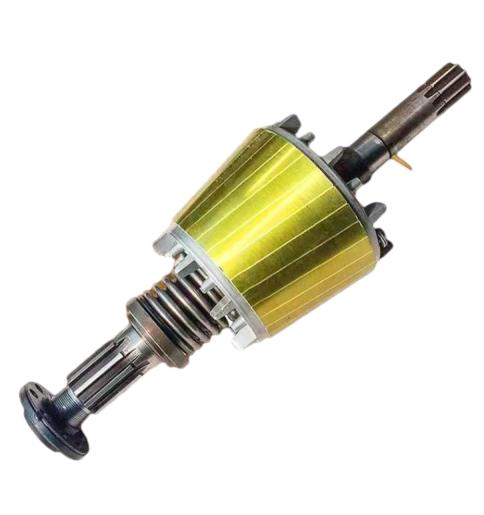

High precision motor rotor multiplefine processing, low noise and smooth operation

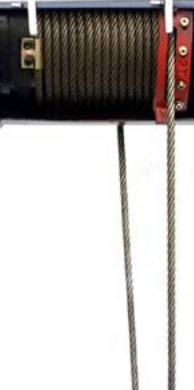

Oiled Steel Wire Rope,Safty & Reliable,GB Standard Wire rope,Sturdy & Durable,Large CapacityAnti-Rotate,Anti-Brake Safty
