0.5 Ton Single Speed Electric Chain Hoist

Junchi EQ 0.5-Ton Hoist: Lightweight. Tough. Precise.

1.Tough for Life: M5 work grade for intensive use.

2.All-Environment Ready: IP55 rating for dust and water.

3.Safety Built-In: Friction clutch and limit switches.

4.Easy & Light: Aluminum body simplifies maintenance.

5.Total Control: Dual-speed for precise positioning.

6.Unique Design:Exclusive design of our factory

Quantity :

add to cart

Contact Now

Product Introduction:

Electric chain hoists are widely used in mechanical manufacturing, assembly lines, maintenance workshops, warehouse logistics, and various applications requiring precision lifting. As a technically mature, lightweight lifting device, electric chain hoists adhere to a robust and durable design philosophy, strictly complying with relevant international safety and technical standards.
The EQV series is renowned for its compact structure, light weight, high efficiency, and ease of operation and maintenance, demonstrating outstanding reliability and cost-effectiveness among comparable material handling equipment. Electric chain hoists offer a broad lifting capacity range from 0.25 tons to 35 tons or higher, with duty classes spanning M3 to M5 to meet varying strength requirements across diverse operational environments. Additionally, we provide customized chain hoist solutions tailored to your specific working conditions.

Product Advantages:

1. Built for Demanding Applications

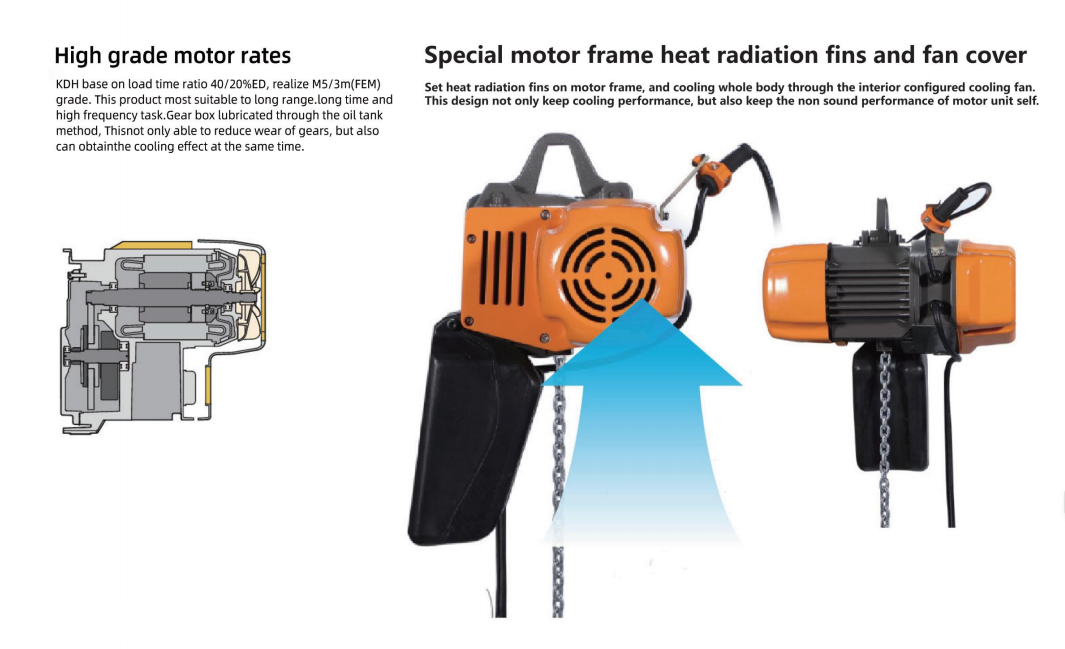

Designed for high-frequency, high-load-duty cycles up to M5 class. Equipped with integrated air cooling to ensure reliable performance under continuous heavy-duty operation.

2. Dual Safety Mechanism

Friction Clutch: Protects the electric chain hoist and load chain from damage caused by overload or improper ground lifting.
Upper/Lower Limit Switches: Prevents over-winding and potential damage to the hoist and chain.
Together, these features form a redundant safety system for enhanced operational security.

3. Robust Construction for Harsh Environments

One-piece cast aluminum housing ensures high strength, durability, and excellent heat dissipation.
IP55-rated enclosure offers dust and water jet protection, making it suitable for severe working conditions.

4. Simplified Design for Easy Maintenance
The monobloc cast body reduces the number of components, streamlining structure and minimizing maintenance needs while maintaining high mechanical performance.

5. Unique Design

Compared to similar products, our design stands out with its unique appearance.

Electric Chain Hoist Parameters:

Model	Name	Lifting weight	speed	power	work duty	Insulation class	Order quantity
EQ 0.25-01 YS	EQV Electric Chain Hoist 250kg	0.25T	15/3m/min	0.75KW	M5	F	1

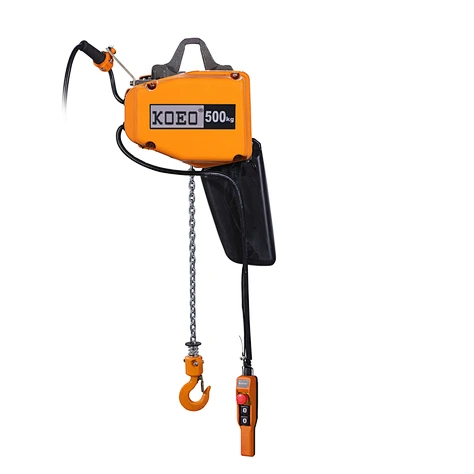

EQ 0.5-01 YS	EQV Electric Chain Hoist 500kg	0.5T	7.8/1.6m/min	0.75KW	M5	F	1
EQ 01-01 YS	EQV Electric Chain Hoist 1T	1T	5.2/1m/min	1.1KW	M5	F	1
EQ 02-02 YS	EQV Electric Chain Hoist 2T	2T	2.6/0.5m/min	1.1KW	M5	F	1

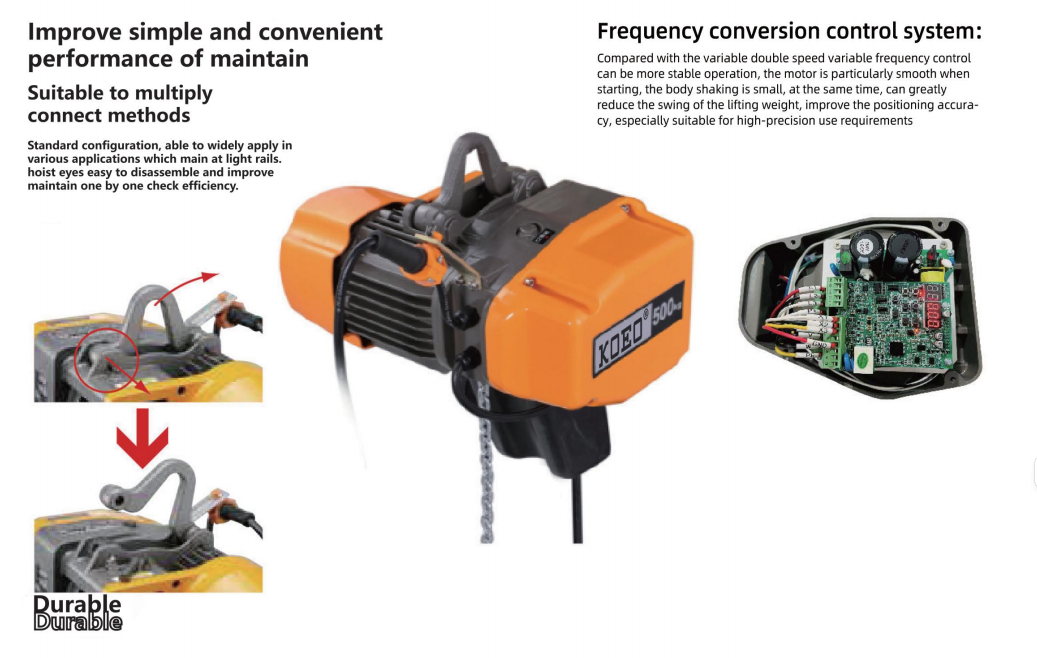

Electric Chain Hoist Details:

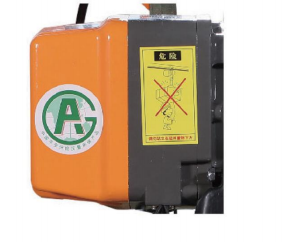

Safety Protection Device for Electric Chain Hoist :

Ensuring safety is the fundamental requirement of lifting equipment:

The EQV series chain hoist is equipped with triple safety features: Electric overload protection, frictionclutch,Up and Down limit switch Tripling safety

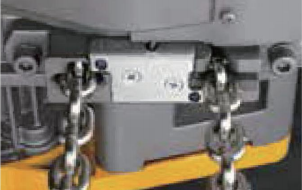

1.Friction clutch overload anti device willmotor idling to pre-vent overload andoverload caused hoist body and loadchaincaused damages when load weightexceed the rated load.(This performancewill not affected by the environmenttem-perature)

2.When excessive lifting or lowering, the limit switch will dis-connect the control signal line to stop the motor from work-ing, and the limit switch can prevent the hoist body and theload chain from being damaged (do not use this function fre-quently).

Safety Protection Device for Electric Chain Hoist

3.The spacing switch will make motor stopwhen over rising orover descending.Canprevent hoist body and load chain dam-agedthrough spacing switch. (Please don' tfrequently usethis function)
