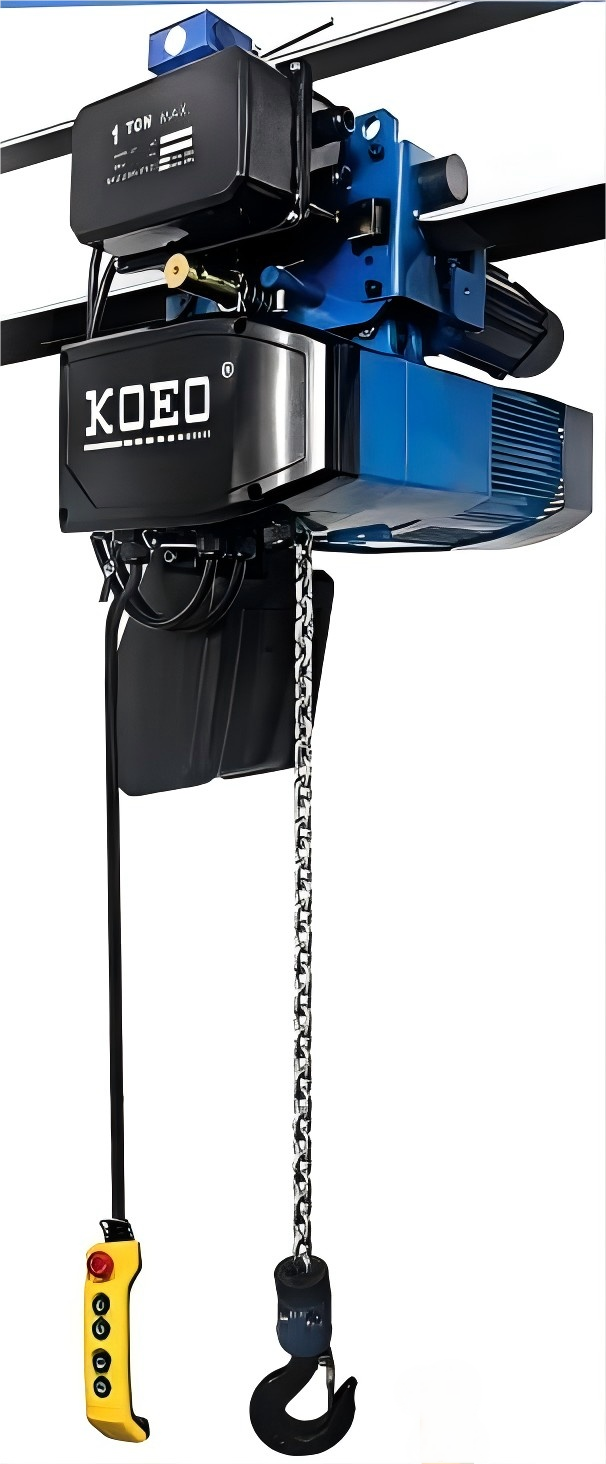

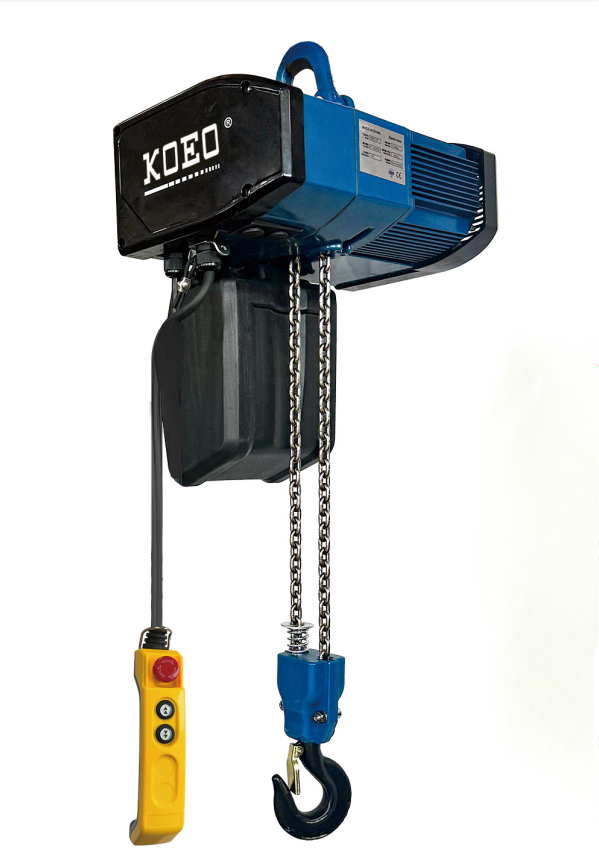

1 Ton KN European electric chain hoist with hook

In today's industrial landscape where productivity and safety are paramount, reliable and efficient lifting equipment is essential. The KN Series European Electric Chain Hoist, built to rigorous European engineering and manufacturing standards, integrates high performance, superior safety, and extended service life into a single, robust solution for your material handling needs.

1. Core Performance Advantages: Efficient, Precise, Durable

• High-Performance Operation: Featuring an optimized three-phase motor and precision gearbox, the hoist ensures smooth lifting, quiet running, and accurate positioning. The dual-speed control (standard/slow) allows for efficient handling at 60% duty cycle, while also enabling precise, low-speed maneuvering for delicate assembly or positioning tasks.

• Exceptional Service Life: Key components are revolutionarily upgraded. The load chain, made from DAT alloy steel and treated with carburizing and nickel-plating, offers far greater wear and corrosion resistance than standard chains. Combined with a high-quality gear mechanism, the hoist's theoretical service life is approximately 20% longer than conventional FEM 2m class hoists, significantly extending maintenance intervals and reducing total cost of ownership.

• Robust Load Capacity & Duty Class: The series covers capacities from 0.5T to 2T with duty classes up to M6, meeting demands from general workshop use to frequent, heavy-duty operations. An optimized cooling system (fan + heat sink) significantly improves the motor's duty cycle, enabling sustained high-intensity work.

2. Comprehensive Safety Protection for Peace of Mind

• Built-In Multi-Layer Safety:

  • Overload Clutch: A mechanical friction clutch instantly disengages when the load exceeds the rated capacity, effectively protecting the main body and load chain from permanent overload damage.

  • Electromagnetic Braking System: With a high safety factor of 2.5, the brake is powerful and reliable. It ensures smooth, low-noise starts and stops, with a lifespan of up to 1 million braking cycles, guaranteeing secure load suspension at any height.

  • Thermal Protection Device: A built-in temperature sensor automatically cuts off the control circuit if the motor temperature reaches 150°C due to overload, preventing burnout.

  • Advanced Limit Switch Design: Utilizes a highly sealed micro-switch with an IP55 rating, ensuring reliable operation in dusty, humid, or harsh environments, with a mechanical life reaching millions of cycles.

3. Ergonomic Design for Enhanced Usability & Maintainability

• Flexible Suspension Design: The newly designed suspension lug offers flexibility for easy adaptation to various I-beam or support structures, simplifying installation.

• Ergonomic Remote Control: The compact, ergonomically designed pendant control is comfortable to hold. Its PCB-triggered switching mechanism reduces operator finger fatigue and greatly extends the switch's own service life.

• Robust and Aesthetic Chain Container: The optimized chain container is not only sturdier and more aesthetically pleasing but also provides better protection against dust and debris ingress.

• Compact Forged Hook: Maximizes the effective lifting height while maintaining the highest quality and safety standards.

Conclusion
The KN Series European Electric Chain Hoist is more than just a tool—it's a strategic investment in enhancing your workshop productivity, ensuring operational safety, and optimizing long-term costs. Its modular design and ease of maintenance ensure the hoist remains in peak condition throughout its entire lifecycle.
