Model No: EQ02-01L

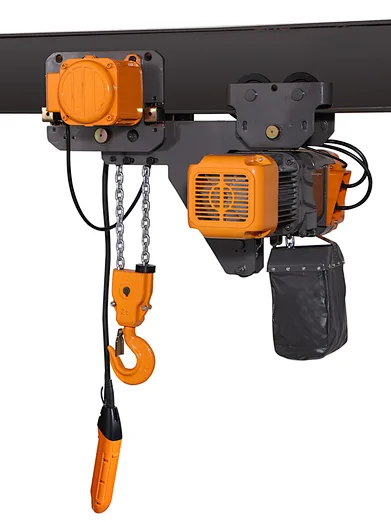

2 Ton Double Chain Super-low Head Room Electric Chain Hoist
Junchi offers high quality electric chain hoists. EQ series is an upgraded type. We adjust the hoist body to smaller size and greatly improve the performance. It is superior to the HHBB series in all aspects. The capacity range is 0.5-30T.
Features:
1. M5 work level: Means a much longer service life.
2. IP55 protection level: Can work continuously for longer periods of time in harsh environments.
3. With friction clutch: Together with up/down limit switch, dual security guarantee.
4. Integrated aluminum casting molding: Lightweight and easy to maintain.
Features:
1. M5 work level: Means a much longer service life.
2. IP55 protection level: Can work continuously for longer periods of time in harsh environments.
3. With friction clutch: Together with up/down limit switch, dual security guarantee.
4. Integrated aluminum casting molding: Lightweight and easy to maintain.
Quantity :
Description:
Low Head Room Electric Chain Hoist Parameters
| Model | Name | Lifting weight | speed | power | work duty | Insulation class | Order quantity |
| EQ 01-01L | Low Head Room Electric Chain Hoist-Single chain 1Ton | 1T | 7.1m/min | 1.5KW | M5 | F | 1 |
| EQ 02-01L | Low Head Room Electric Chain Hoist-Single chain 2Ton | 2T | 7.0m/min | 3.0KW | M5 | F | 1 |
| EQ 02-02L | Low Head Room Electric Chain Hoist-double chain 2Ton | 2T | 3.6m/min | 1.5KW | M5 | F | 1 |
| EQ 03-01L | Low Head Room Electric Chain Hoist-sigle chain 3Ton | 3T | 7.0m/min | 3.6KW | M5 | F | 1 |
| EQ 03-02L | Low Head Room Electric Chain Hoist-D Double chain 3Ton | 3T | 3.5m/min | 3.0KW | M5 | F | 1 |
| EQ 05-02L | Low Head Room Electric Chain Hoist-Double chain 5Ton | 5T | 3.5m/min | 3.6KW | M5 | F | 1 |
Electric Chain Hoist Logistics information
| Each product length*width*height （cm) | Each piece of merchandise（kg) | Delivery period |
| 68*35*52 | 50 | 7 |
| 68*35*52 | 60 | 7 |
| 76*40*48 | 105 | 7 |
| 76*40*61 | 110 | 7 |
| 76*46*61 | 120 | 7 |
| 76*49*61 | 128 | 7 |
Advantages Of Our Electric Chain Hoist
Why choose EQ Series Electric Chain Hoist
